Ferrite/Ceramic magnets

Description
Ceramic (ferrite) magnets are one of the most cost-effective magnets. They have good corrosion resistance, and can work under moderate temperature. Ceramics (ferrites) are low-energy products and are commonly used in magnetic components containing low- carbon steels.
Tel:
+86 571 82839133
E-mail:
info@smi-mag.com
Collect
Model No. NS20151113452462

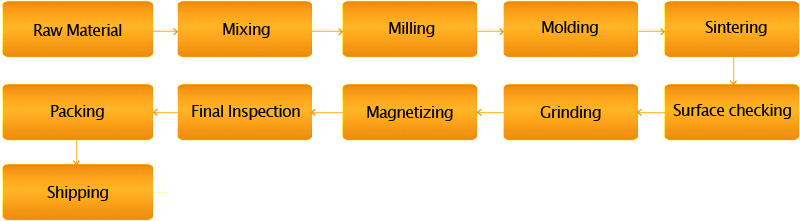

  • Flowchart
  • Properties
  • Characteristics

Mat.

Br

bHc

iHc

BHmax


mT

KG

KA/m

KOe

KA/m

KOe

KJ/m3

MGOe

Y10T

200~235

2.0~2.35

125~160

1.57~2.01

210~280

2.64~3.52

6.5~9.5

0.8~1.2

Y20

320~380

3.2~3.8

135~190

1.70~2.38

140~195

1.76~2.45

18.0~22.0

2.3~2.8

Y22H

310~360

3.1~3.6

220~250

2.77~3.14

280~320

3.52~4.02

20.0~24.0

2.5~3.0

Y23

320~370

3.2~3.7

170~190

2.14~2.38

190~230

2.39~2.89

20.0~25.5

2.5~3.2

Y25

360~400

3.6~4.0

135~170

1.70~2.14

140~200

1.76~2.51

22.5~28.0

2.8~3.5

Y26H

360~390

3.6~3.9

220~250

2.77~3.14

225~255

2.83~3.21

23.0~28.0

2.9~3.5

Y27H

370~400

3.7~4.0

205~250

2.58~3.14

210~255

2.64~3.21

25.0~29.0

3.1~3.7

Y30

370~400

3.7~4.0

175~210

2.20~2.64

180~220

2.26~2.77

26.0~30.0

3.3~3.8

Y30BH

380~390

3.8~3.90

223~235

2.80~2.95

231~245

2.90~3.08

27.0~30.0

3.4~3.7

Y30-1

380~400

3.8~4.0

230~275

2.89~3.46

235~290

2.95~3.65

27.0~32.0

3.4~4.0

Y30-2

395~415

3.95~4.15

275~300

3.46~3.77

310~335

3.90~4.21

28.5~32.5

3.5~4.0

Y32

400~420

4.0~4.2

160~190

2.01~2.38

165~195

2.07~2.45

30.0~33.5

3.8~4.2

Y33

410~430

4.1~4.3

220~250

2.77~3.14

225~255

2.83~3.21

31.5~35.0

4.0~4.4

Y35

400~410

4.00~4.10

175~195

2.20~2.45

180~200

2.26~2.51

30.0~32.0

3.8~4.0




Curie Temperature (°C)450
Maximum Operating Temperature (°C)250
Hardness (Hv)480-580
Density (g/cm3)4.8 - 4.9
Relative Recoil Permeability (μrec)1.05 - 1.20
Saturation Field Strength, kOe (kA/m)10 (800)
Temperature Coefficient of Br (%/°C)-0.2
Temperature Coefficient of iHc (%/°C)0.3
Tensile Strength (N/mm)<100
Transverse Rupture Strength (N/mm)300
