Description
Iron-chromium-cobalt (FeCrCo) magnets have good plasticity, ductility and machinability, their magnetic properties are similar to those of Alnico5. FeCrCo magnets can be made into semi-hard magnetic alloys, which can be used at high temperatures and have good corrosion resistance. They also can be produced to different shapes, such as wire, pipe, bar, strip and so on.
Model No. NS20151111213452

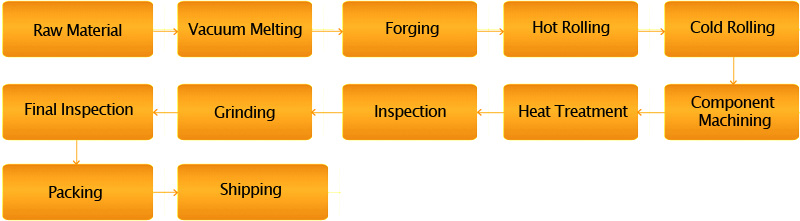

Flowchart Properties Characteristics
Grade
Br
Hcb
Hcj
(BH)max
Remark
mT
Gs
kA/m
Oe
kA/m
Oe
kJ/m3
MGOe
FeCrCo4/1
850-1000
8500-10000
8-31
100-390
9-32
110-400
4-8
0.5-1.0
Isotropic
FeCrCo10/3
800-900
8000-9000
31-39
390-490
32-40
400-500
10-13
1.1-1.6
FeCrCo12/4
750-850
7500-8500
40-46
500-580
41-47
510-590
12-18
1.5-2.2
FeCrCo12/5
700-800
7000-8000
42-48
530-600
43-49
540-610
12-16
1.5-2.0
FeCrCo1/1
900-1300
9000-13000
2-8
25-100
2-8
25-100
1-9
0.1-1.1
Anisotropic
FeCrCo12/2
1300-1450
13000-14500
12-40
150-500
13-41
160-510
12-36
1.5-4.5
FeCrCo24/6
990-1100
9900-11000
56-66
700-830
57-67
710-840
24-30
3.0-3.8
FeCrCo28/5
1100-1250
11000-12500
49-58
610-730
50-59
620-740
28-36
3.5-4.5
FeCrCo44/4
1300-1450
13000-14500
44-51
560-640
45-52
570-650
44-52
5.5-6.5
FeCrCo48/5
1320-1450
13200-14500
48-53
600-670
49-54
610-680
48-55
6.0-6.9
Curie Temperature (°C) 640 Maximum Operating Temperature (°C) 500 Temperature Coefficient of Br (%/°C) 0.02-0.036 Electrical Resistivity Ohm-cm x10-6(at 20oC) 70 Thermal Conductivity W/(m • K) 21 Coefficient Of Thermal Expansion 10-6/oC 10
SIZE RANGE
shape
specification(mm)
state
Strip
thickness*width
Soft
Wire
φ0.1-φ8.0
Soft
Bar
φ8-φ60
Forging
Tube
outer diameter*inner diameter
Soft
